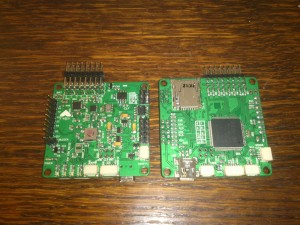

I’m glad to present our new 32bit controller – F4BY:
Main Features:
- CPU – STM32F407VGT6 (168MHz)
- Accel & Gyro – MPU6000
- Compass – HMC5883
- Baro - MS5611
- Flash Memory – m25p16
- MicroSD card slot
Interface connectors:
- 4 USART
- 1 SPI
- 2 I2C
- 1 CAN
- 1+3 ADC
- 3 GPIO
- 8 PWM Outputs
- 8 PWM Input/Output
- 1 PWM output for Buzzer
- 1 Sonar input (Trigger/Echo)
Software:
- ArduCopter 3.1.1 (ported) aka MPNG32
- Our custom software (in development)
Will post news and vids ASAP (I’m just received boards from manufacturer).
Yes! I glad to see that !
But… better idea is LSM330 on SPI in that board.
Thanks for best work
Any particular timeline where the FC will be release and heads-up on estimated retail price?
We make 5 prototypes of this board and it costs for us lower than 100$. But I cannot say when we will start to sell it (maybe in Q2 2014) and how much it will cost (But I think, it will remain below 100$).
Sir Alex, this sounds good. You should perhaps release bit and pieces of information to hype up prior to the official release. I wish that it has a casing too. Not sure if this board needs an ext compass too.
